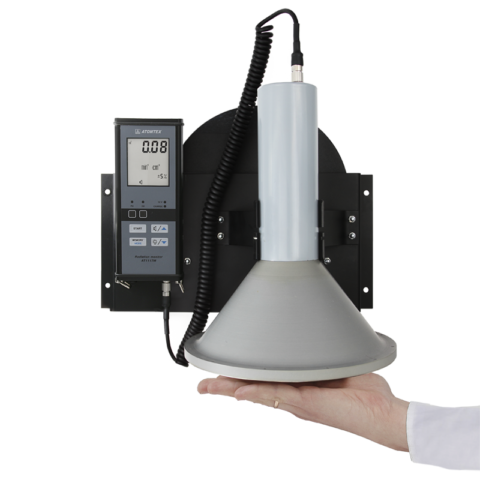

AT1117M Radiation Monitor (With Multifunctional Detection Unit)

General control of radioactive contamination in count rate mode with a possibility of separate measurements of alpha particles flux density and beta particles flux density, as well as gamma radiation dose rate measurement.



  • Alpha, betta and gamma radiation monitoring
  • Wide activity measurement range
  • Can be attached to a telescopic bar





Request a quote

Out of stock

Specification

AT1117M Radiation Monitor (With Multifunctional Detection Unit)
Processing unit PU
Measurement range of gamma radiation ambient dose equivalent rate 1 µSv/h – 100 mSv/h
Overall dimensions, weight 177x85x124 mm, 1.2 kg
Detection unit BDPS-02
Detector Geiger-Muller counter tube, 14 cm2
Energy range 4 – 7 MeV (Alpha radiation)
155 keV – 3.5 MeV (Beta radiation)
20 keV – 3 MeV (Gamma radiation)
Measurement range of pulse count rate 0.01 – 1.5·105 s-1
Measurement range of alpha particles flux density 2.4 – 106 particle·min-1·cm-2
Measurement range of beta particles flux density 6 – 106 particle·min-1·cm-2
Measurement range of gamma radiation ambient dose equivalent rate 0.1 µSv/h – 30 mSv/h
Overall dimensions, weight 138x86x60 mm, 0.33 kg

Design and specifications are subject to change without notice.
For details please refer to the datasheet.
